Model R-400 Fixed Slat

Model R-400 Fixed Slat

  • 051069 Slat 1/2 R-400

A new slat model with external dimensions of 400 x 50 mm, consisting of the union of two 1/2 R-400 slat profiles.

It provides sunlight protection and lighting by reflecting the light falling on the slat  into the building.

For vertical installations more than 4,500 mm high, the installation of the R-400 fixed forged slat is recommended as a stabiliser.

Possibility of installing a single 1/2 R-400 profile slat vertically and horizontally.

Technical Details

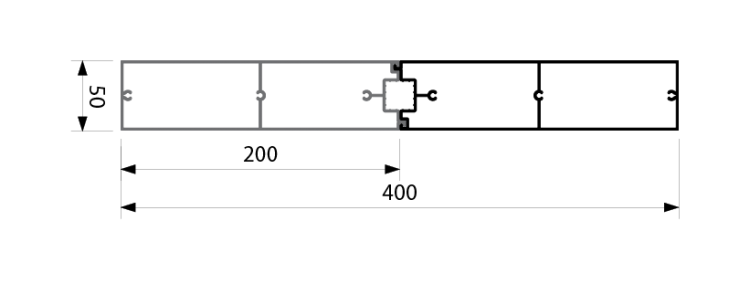

Section

Louvres / Brise Soleil

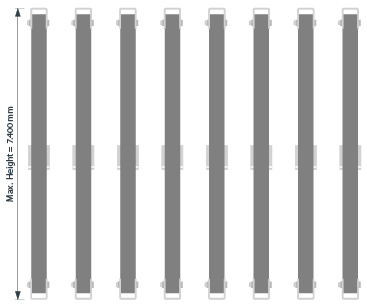

VERTICAL POSITION FRONT VIEW

Minimum gap of 100 mm if installation is by framework fastening.

Louvres / Brise Soleil

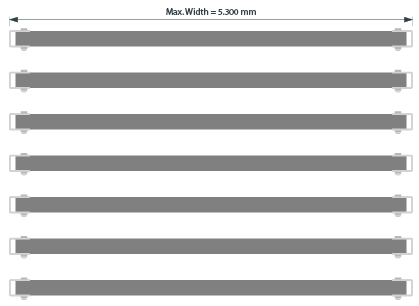

HORIZONTAL POSITION FRONT VIEW
