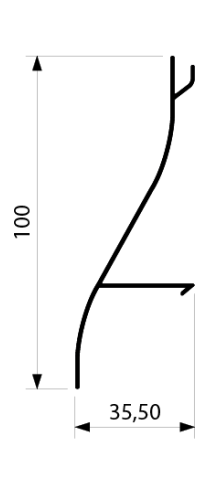

Model S Fixed Slat

Model S

  • 050080

This slat has a highly innovative curved form which gives the facade in which it is installed a more attractive appearance.

The supports are punched equidistantly (allowing various steps) to facilitate the levelled anchoring of the slats without the need for fixing screws. This spacing will depend on the desired degree of coverage and aeration area.

Technical Details

Wind Load Resistance

UNE-EN 13659:2004 Wind load resistance
UNE-EN 1932:2001 Performance criteria including safety

Supports

1. DOUBLE SUPPORT SELF-TAPPING [SCREWS]
2. DOUBLE SUPPORT

Maximum Installation Distances

* When this distance is more than 1.500 mm, ask us for information about the most suitable structural frame for your installation..

* NOTE: If the distance is greater than those shown, a structural profile must be attached to the surface according to the project.

* Test performed with dual 40×40 support.

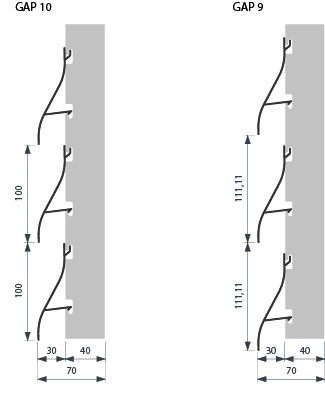

Section

Standard gap. To see other possibilities.
